This is the optional Double Shock Spring Set for the HPI 1/5 Baja
FEATURES:
Double spring system provides a rapid initial respond at the beginning when both the main and tender springs are compressed together and deliver the desired firmer ending rate once the tender spring closes completely leaving only the main spring to deflect further.
This spring system are soft enough to compensate for Monster jump irregularities ensuring permanent road contact and the spring system are firm enough to reduce body roll, squat and dive of the vehicle during cornering, acceleration and braking.
Steel construction.
Shock springs are painted 3 different colors for the Main spring 4 different color for the Tender spring that correspond with the stiffness of the springs.

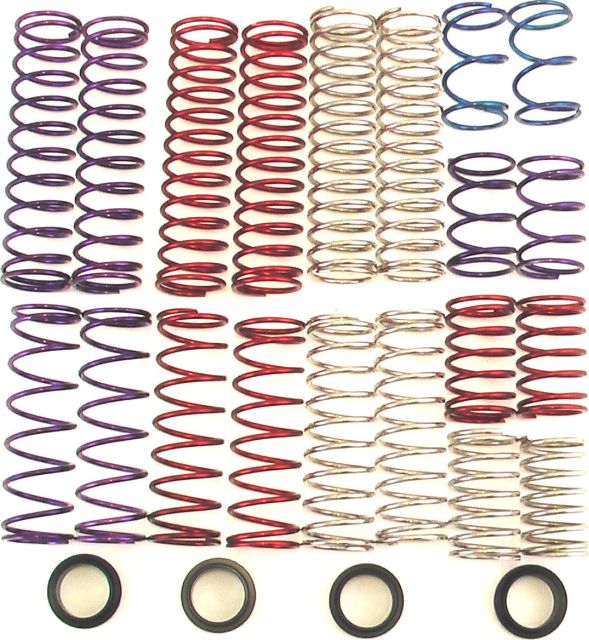

YOU WILL RECEIVE:
Two 4 Coil Tender springs (Blue in color).
Two 5 Coil Tender springs (Purple in color).
Two 7 Coil Tender springs (Red in color).
Two 8 Coil Tender springs (chrome in color).
Two 12 Coil Rear Main springs (purple in color).
Two 14 Coil Rear Main springs (Red in color).
Two 15 Coil Rear Main springs (chrome in color).
Two 8 Coil Front Main springs (purple in color).
Two 9 Coil Front Main springs (Red in color).
Two 11 Coil Front Main springs (chrome in color).
Four Machined Delrin spring collar
REQUIREMENTS:
The springs must be installed onto the built shock.
SPECIFICATIONS:
Tender springs
length: (45.6mm)
Diameter inner: (23mm)
Wire size 2.4mm
Rear Main springs
length: (110mm)
Diameter inner: (23mm)
Wire size 2.4mm
Front Main springs
length: (88mm)
Diameter inner: (23mm)
Wire size 2.4mm
COMMENTS:
This spring kit would allow you to have 12 combination of spring set up. for the Front and 12 for the Rear.
