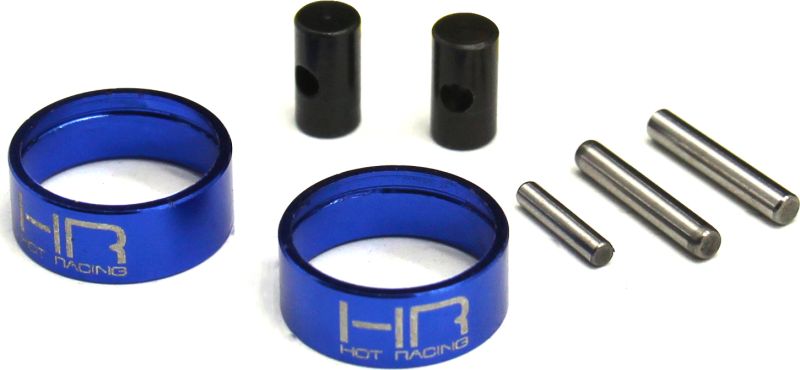

15 mm CV Splined Drive rebuild kit
Hot Racing CV rebuild kit for Hot Racing ERVT37RC, RVO288RC axles
- CNC machined aluminum and steel construction
- Steel pins and couplings
- One (1) aluminum pin capture rings (6.15 x15.95mm)
- Two (2) steel CVA couplers (barrels) (9.23mm x 4.95mm)
- Two (2) steel CVA cross pins (2.45mm x14.75mm)
- One (1) steel slider lock pin (1.95mmx9.69mm)
- Installation onto Hot Racing ERVT37RC
- Pin capture ring: 16.15x14.98x6.15mm (ID x OD x length)
- Coupler (barrel): 4.47x10mm (OD x length)
- Cross pin: 2.45x14.75mm
- Steel slider lock pin (1.95mmx9.69mm)
Comment
Screw pin use SSM45P13
