Hot Racing optional upgrade axle kit for the TRA 2WD electric Stampede and electric Rustler
FEATURES:
- Heavy duty CNC machined #45 hardened carbon steel construction
- Replaces factory plastic rear drive axles
- Hardened steel outdrives cups and 12mm wheel hex hubs
- Black oxide coated steel aids corrosion resistance
- Blue anodized aluminum pin capture rings with rubber o-rings to prevent movement
- Design eliminated CV pin setscrew
- Near zero backlash design
- Direct fit with no vehicle modification required

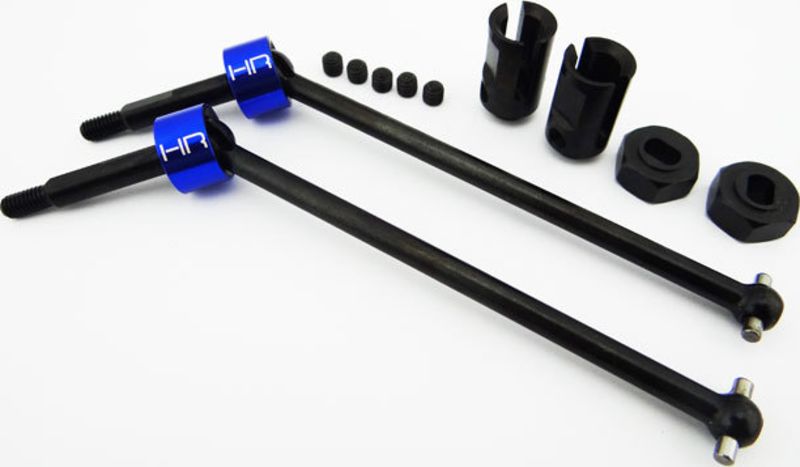

YOU WILL RECEIVE:
- Two (2) rear assembled CVD axles
- Two (2) steel outdrive cups
- Two (2) steel 12mm keyed hex hubs
REQUIREMENTS:
- Removable thread lock (e. g. blue Loctite) on screws threading into metal
- Light grease for CV joint helps maintain their longevity
SPECIFICATIONS:
- Overall length: 122mm
- Dogbone length pin to pin: 86mm
- Dogbone pin diameter: 2.5mm
COMMENTS:
- Replaces factory plastic TRA TRA1951 half shafts, TRA2753X stub axles, and TRA4628 output yokes
- For heavy duty or VXL power applications, use Hot Racing heavy duty splined axles STE288VXL02 or STE288RC
- Replacement parts include: RECT288 (12mm hexes), RSTE288A (outdrive drive cup)
description revised by: SN September 21, 2016
