Hot Racing 70mm internal spring air damper shock set with shock towers (damper stays) for the Tamiya Bruiser or other R/C vehicle requiring 70mm air shocks
shock mount
- CNC machined aluminum shock bodies, black anodized
- CNC machined aluminum upper shock cap with o-ring seal, silver anodized
- CNC machined aluminum lower shock cap with shock shaft guide, silver anodized
- Precision machined 7mm stainless steel shock shaft for durability
- Double o-ring lower shaft seal
- Air damping
- Internal springs with three rates included: Gold (soft), Black (medium), Silver (stiff)
- All aluminum is anodized for durability, corrosion resistance, and great looks

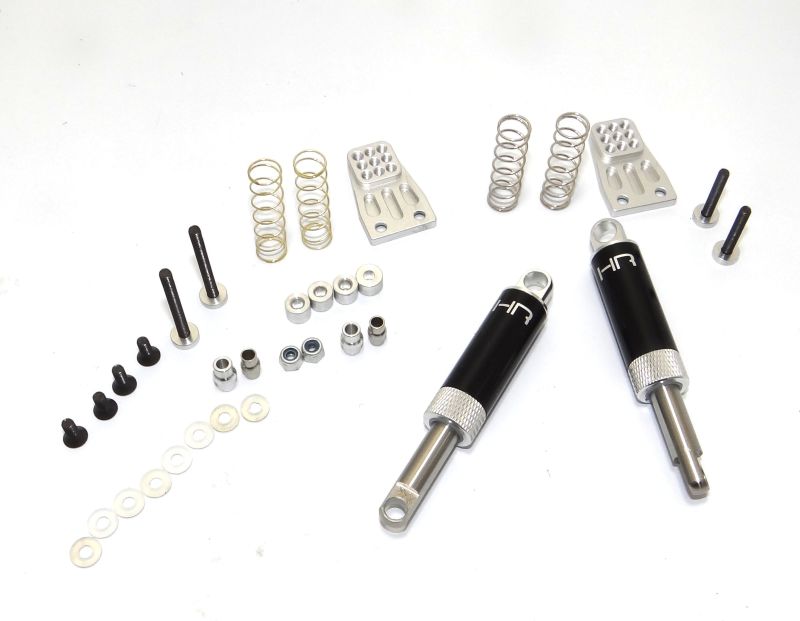

YOU WILL RECEIVE:
- Two (2) Bruiser multi mount shock mount
- Two (2) assembled shocks
- Two (2) gold (soft) springs
- Two (2) black (medium) springs
- Two (2) silver (stiff) springs
- Two (2) 4.8mm ball mounts
- Two (2) 5.8mm ball mounts
- Four (4) 5x7mm offset spacers- Four (4) 3mm countersunk washers
- Four (4) 3x25mm flat head cap screws- Two (2) 3x20mm flat head cap screws- Eight (8) 3mm o-rings
- Two (2) M3 lock nuts
- Installation on vehicle
- Recommended to use Team Associated Green Slime ASC1105 on lower o-ring seals to assist sealing and increase smoothness
- Extended center to center length: 70mm
- Compressed center to center length: 51mm
- Overall length: 78mm
- Body diameter: 13mm
- Shaft diameter: 7mm- Shock tower overall height: 29.5mm
- Shock tower mounting holes to center upper shock mount hole: 19.5mm
- Shock tower mounting holes: 2x on 11mm centers
- These shocks are not oil filled. A light coating of thick grease works well to control bounce.
- Replacement o-rings are Hot Racing RTD48RR
description revised by: SN October 24, 2016
